Leading Wholesale Aluminum Delivery Hand Trucks | Factory Direct
Engineered for high-frequency last-mile logistics. Source fleet-ready aluminum hand trucks featuring a 6.5kg ultra-lightweight frame and a 150kg continuous payload capacity.
Ergonomic Aluminum Delivery Hand Truck with Integrated Stair-Glides
Model Number: XY-HT1958
Payload Capacity: 150 kg (330 lbs) Continuous Load
Unit Weight: 6.5 kg (14.3 lbs)
Frame Material: High-Strength 6061-T6 Extruded Aluminum (Rust-Proof)
Wheel Configuration: 3-Wheel Star-Wheel Stair-Climber Assembly (Solid No-Flat Rubber Tires with Precision Bearings)

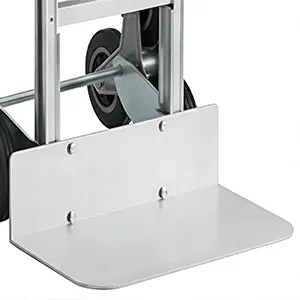

Toe Plate Dimensions: 355 mm x 225 mm (Die-Cast Heavy-Duty Aluminum)
Overall Size (LxWxH): 1520 mm x 460 mm x 625 mm
Container Loading Density: 1,100 units / 40’HQ (CKD Flat-Packed)
Commercial Terms: MOQ 500 pcs | Production Lead Time: 15–20 Days
Engineered for High-Frequency Urban Delivery & Stair Transit
The XY-HT1958 solves the core operational challenge of last-mile logistics: moving heavy payloads up curbs and stairs without causing operator fatigue.
Industrial Durability: Constructed from high-strength 6061-T6 extruded aluminum, delivering standard steel-grade structural rigidity while weighing only 6.5 kg (14.3 lbs).
High-Density Freight Efficiency: Utilizing a Completely Knocked-Down (CKD) modular design, each 40’HQ container holds up to 1,100 units, significantly cutting per-unit ocean freight costs.

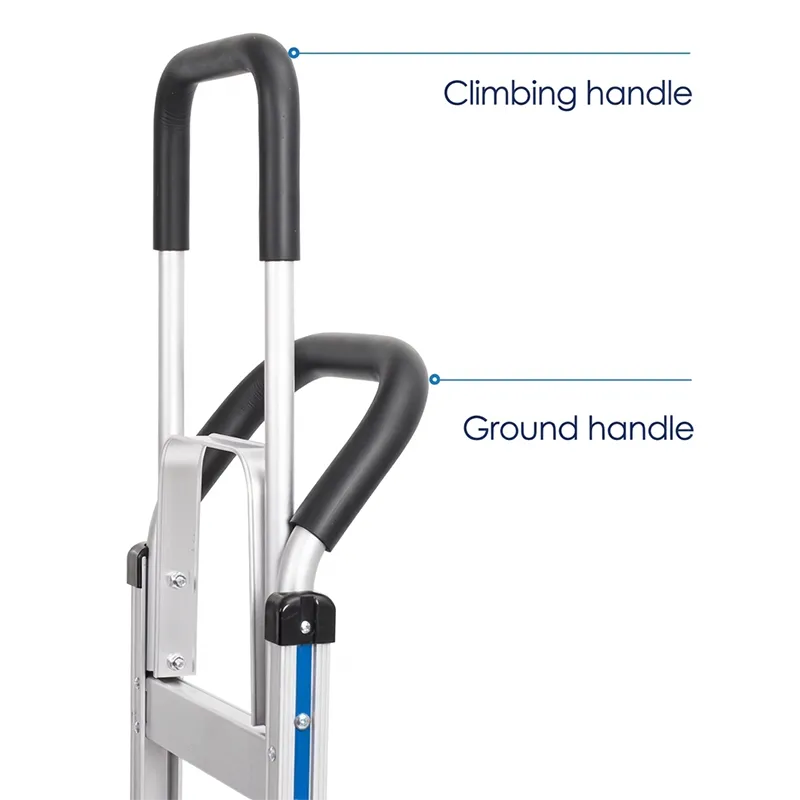

Ergonomic Dual-Handle System: Features an elevated climbing handle for maximum leverage on staircases and a neutral ground handle to reduce wrist strain.
Specifications |
Details |
|---|---|
Overall Height
|
1520 mm (H) x 460 mm (W) x 625 mm (D)
|
Toe Plate Size
|
355 mm x 225 mm (Heavy-Duty Die-Cast Aluminum)
|
Material
|
6061-T6 Extruded Aluminum Alloy
|
Wheel Type
|
3-Wheel Stair-Climber Assembly (6.5" Solid Rubber Tires)
|
Surface Treatment
|
Anodized Natural Silver Frame with Custom Powder-Coated Wheel Brackets (Blue/Black Standard)
|
Safety Certifications
|
Fully compliant with ISO 9001:2015 Manufacturing Standards
|

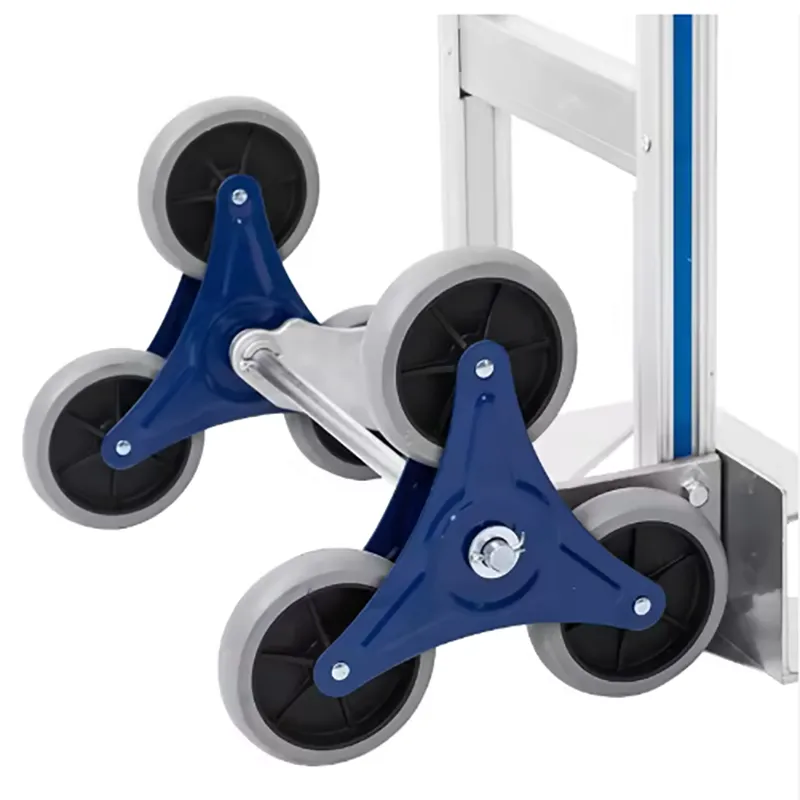

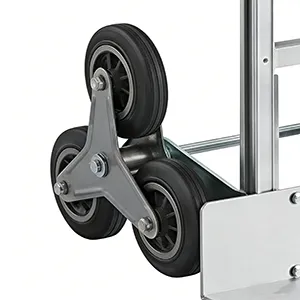

Tri-Wheel Stair-Climbing Assembly
The Advantage: In urban logistics, delivery drivers constantly face high curbs, thresholds, and stairs.
The XY-HT1958 features a specialized 3-wheel rotation system designed to significantly reduce operator pull-force when navigating stairs and uneven terrain.
Paired with 6.5″ solid non-marking tires, it provides a stable, shock-resistant transition between elevations that standard 2-wheel trucks cannot match.
Ultra-Lightweight 6.5kg Frame for Operator Ergonomics
The Advantage: Reducing equipment weight is the most effective way to prevent workplace injury and driver burnout.
Weighing only 6.5kg (14.3 lbs), this is one of the lightest professional-grade aluminum delivery hand trucks in its class, yet it supports 150kg (330 lbs)—over 20 times its own weight.

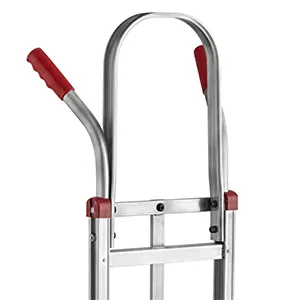

The high-arc ergonomic handle allows for a natural, neutral wrist position, giving operators superior leverage when tilted, even when navigating tight hallway corners or elevator entries.
Why Partner with Xiangyue Metal Tech?
Strong Production Ability
Massive Production Capacity: Our 35,000 m² facility (Est. 2006) ensures we can fulfill orders of 5,000+ units without delaying your supply chain.
Professional OEM/ODM Service
Precision Customization (OEM/ODM): Need a specific toe plate size or brand-specific color? Our dedicated R&D workshop (Est. 2017) specializes in Low MOQ custom industrial solutions.
Global Export Compliance
Reliable Global Export: Managed by Xiangyue Metal Technology (Est. 2021), we handle all international logistics and compliance, specifically optimized for the Australian and Middle Eastern markets.
Frequently Asked Questions
Material Performance & Load Capacity
Q: What specific aluminum alloy is used for the XY-HT1958, and why is it preferred over steel?
A: The chassis is manufactured from 6061-T6 extruded aluminum alloy, offering structural yield strength comparable to mild steel while reducing equipment self-weight by over 50%. This ensures complete rust-proof performance in damp outdoor environments and wet logistics hubs.
Q: How does a 6.5kg frame support a continuous load of 150kg (330 lbs)?
A: Structural rigidity is achieved through robotic weld joints at critical load-bearing stress points, combined with a heavy-duty die-cast aluminum toe plate that prevents frame twisting under maximum weight.
Wheel Specs & Stair Climbing Mechanism
Q: What are the exact specifications of the tri-wheel assembly?
A: Each side features a tri-wheel stair-climbing assembly equipped with 6.5″ non-marking solid rubber tires and sealed precision ball bearings, ensuring smooth rotation without leaving skid marks on indoor commercial flooring.
Q: Are replacement wheels or stair-glide wear strips available for spare parts orders?
A: Yes. We supply modular spare parts packages—including complete tri-wheel assemblies, replacement bearings, and protective aluminum glide strips—to support long-term maintenance for fleet buyers.
B2B Sourcing, Packaging & Customization
Q: Can we order custom toe plate sizes or private label branding for bulk orders?
A: Absolutely. We offer custom-molded or extended toe plates for oversized parcel handling. Private labeling options include precision laser engraving on the aluminum frame and custom-printed export shipping cartons.
Q: How does the Knocked-Down (CKD) packaging work for container shipping?
A: Each hand truck is flat-packed into a compact export carton containing the frame, wheel assemblies, and mounting hardware. Simple 2-step assembly requires standard tools, optimizing 40’HQ container loading density to 1,100 units to slash per-unit ocean freight costs.
