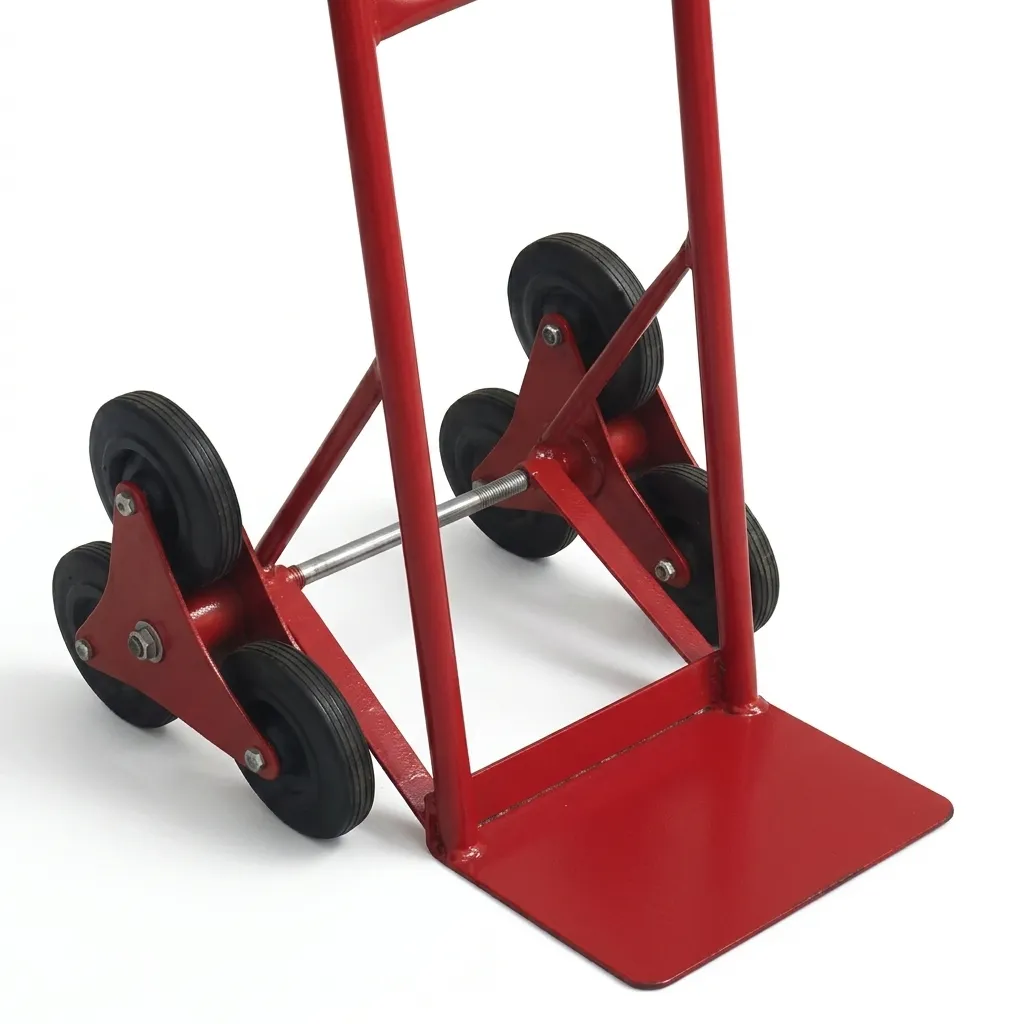

Heavy-Duty Steel Stair-Climbing Hand Truck (XY-HT1310B)
120kg Payload Capacity | Reinforced 6.5″ Solid Tri-Wheel Assembly | High-Density 720pcs/40’HQ SKD Packaging | Rapid 15-20 Day Factory Lead Time
Multipurpose Commercial Service Cart for Supermarkets & Storage
Model Number: XY-HT1310B
Payload Capacity: 120 kg (264 lbs) Structural Workload
Wheel Configuration: Heavy-Duty 6.5″ Solid Tri-Wheel Assembly (Stair-Climbing)
Self Weight: 18.8 kg
Toe Plate Size: 350 mm x 220 mm (Reinforced Carbon Steel)
Overall Dimensions (LxWxH): 1300 mm x 517 mm x 595 mm
Frame Material: High-Tensile Carbon Steel with Powder Coating
Container Shipping Density: 720 pcs / 40’HQ (SKD Flat-Packed)
Commercial Terms: MOQ 500 pcs | Lead Time: 15-20 Days

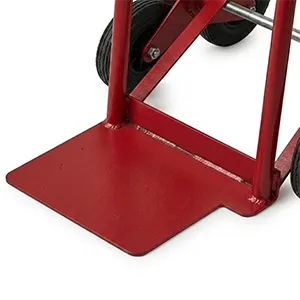

Built to handle diverse packaging sizes, the bespoke 220mm toe plate offers a wider, more secure foundation for stacked cartons and heavy crates. Reinforced at critical stress points, the plate resists deformation under its 120kg rated capacity, ensuring that every load remains perfectly balanced during rapid transit in busy commercial environments.
Every critical stress junction is reinforced via robotic precision welding, strictly meeting the American Welding Society (AWS) structural welding codes for 1.5x load redundancy framework.
Specifications |
Details |
|---|---|
Overall Height
|
1300 mm
|
Toe Plate Size
|
350 mm x 220 mm (Reinforced Steel)
|
Material
|
Industrial Grade High-Tensile Carbon Steel
|
Wheel Type
|
6.5" No-Flat Solid Wheels with Precision Bearings
|
Surface Treatment
|
Anti-Corrosion Industrial Powder Coating (Custom Colors Available)
|
Safety Certifications
|
Fully compliant with ISO 9001:2015 Manufacturing Standards
|

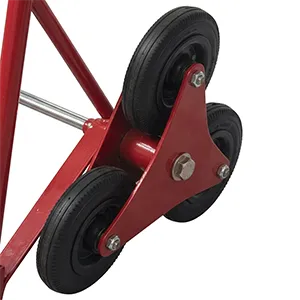

Continuous Stair-Climbing Efficiency: Eliminate transport bottlenecks when navigating curbs, thresholds, and stairs. Equipped with a heavy-duty 6.5″x1.75″ solid tri-wheel assembly, this hand truck rotates smoothly over obstacles without flat-tire downtime, drastically reducing physical strain during high-frequency supermarket replenishment.

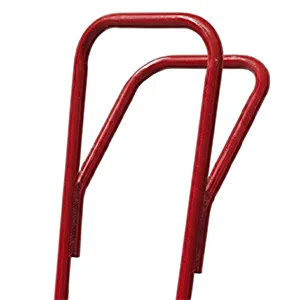

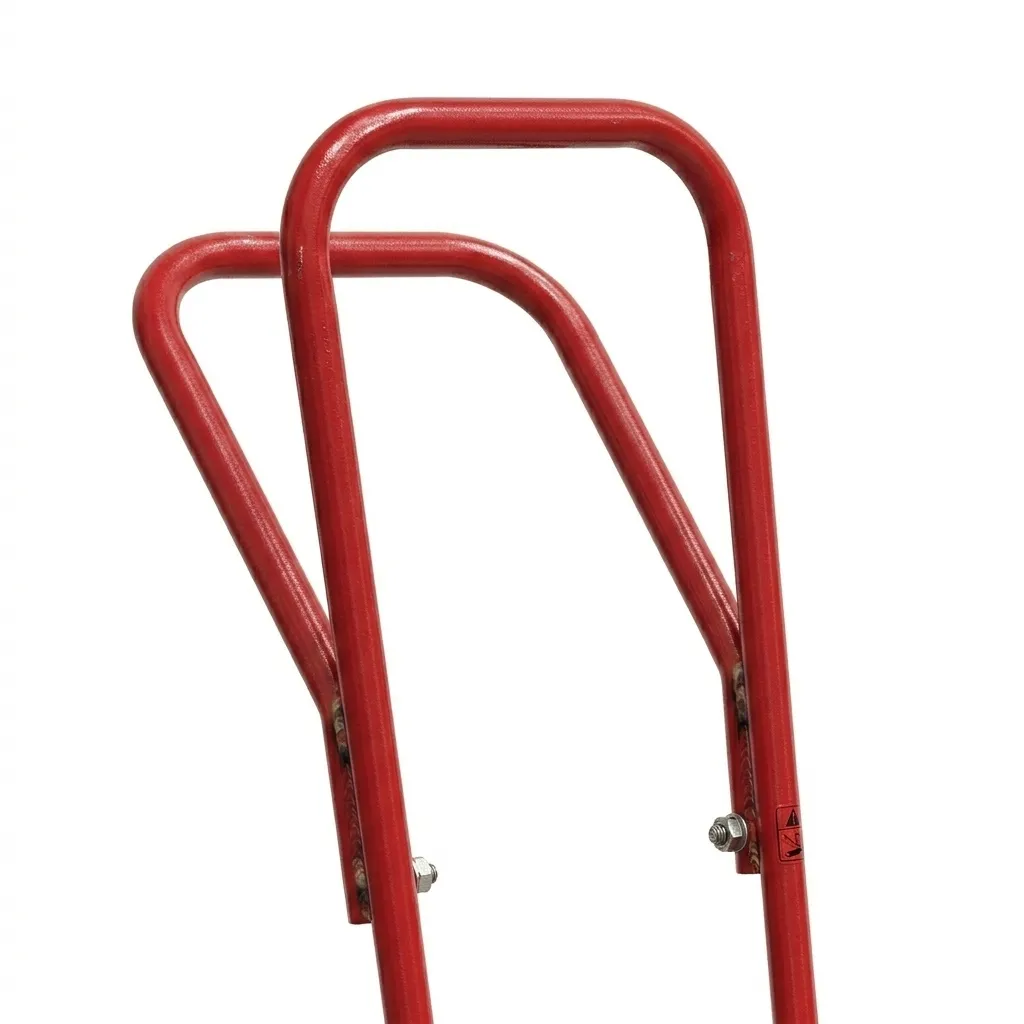

Ergonomic Dual Custom Handles: Control maximum 120kg (264 lbs) loads with absolute precision. The XY-HT1310B features integrated dual-loop handles that provide superior leverage and multi-angle gripping variants. This engineering prevents wrist fatigue during long warehouse shifts and tight aisle maneuvers
Why Partner with Xiangyue Metal Tech?
Strong Production Ability
Massive Production Capacity: Our 35,000 m² facility (Est. 2006) ensures we can fulfill orders of 5,000+ units without delaying your supply chain.
Professional OEM/ODM Service
Precision Customization (OEM/ODM): Need a specific toe plate size or brand-specific color? Our dedicated R&D workshop (Est. 2017) specializes in Low MOQ custom industrial solutions.
Large Clients Accepts
Reliable Global Export: Managed by Xiangyue Metal Technology (Est. 2021), we handle all international logistics and compliance, specifically optimized for the Australian and Middle Eastern markets.
Frequently Asked Questions
Section 1: Technical & Quality Assurance
Q: What is the rated load capacity of the XY-HT1310B for daily warehouse operations?
A: The XY-HT1310B is engineered for a conservative 120kg (264 lbs) continuous workload. Built with high-tensile carbon steel and reinforced gusset welding at critical stress joints, it resists chassis deformation under repetitive heavy-duty use.
Q: How resistant is the surface coating to outdoor moisture and rust?
A: Every frame receives an industrial-grade, thermal-bonded powder coating that comfortably passes a 720-hour salt spray test, providing long-term resistance against chipping, scratches, and oxidation in humid store-rooms or outdoor loading docks.
Q: Are the stair-climbing wheels completely maintenance-free?
A: Yes. The unit features 6.5″ puncture-proof solid rubber wheels mounted on a heavy-duty star-wheel rotating hub. This zero-maintenance design eliminates downtime caused by flat tires on concrete ramps or tiled supermarket aisles.
Q: What bearing mechanism is used in the wheel assembly?
A: Each individual wheel is equipped with double-shielded chrome steel ball bearings, reducing push-effort by up to 35% when navigating full 120kg loads over curbs or upstairs.
Section 2: Ergonomics & Operational Safety
Q: How does the dual-handle design benefit supermarket and warehouse operators?
A: The integrated dual-loop handle structure provides high leverage when breaking back heavy cargo, while allowing multiple hand positions for tight-aisle maneuvering and stable two-person staircase transit.
Q: Is the toe plate large enough to handle bulky commercial cartons?
A: Yes. The 350mm x 220mm heavy-gauge steel toe plate provides a wide base for stacked boxes, reinforced with back-side gussets to prevent sagging over extended service life.
Section 3: OEM & B2B Customization
Q: Do you support custom branding and Pantone color matching for bulk orders?
A: Absolutely. As a direct manufacturer, we offer complete OEM/ODM branding services, including laser-cut or screen-printed logos on the toe plate and custom powder-coating colors matched to your corporate identity.
Q: Can frame dimensions be modified for specialized logistics fleets?
A: Yes. We can adjust the frame height, toe plate extension, or wheel clearance during the blueprint layout stage for volume OEM contracts.
Section 4: Supply Chain & Shipping Logistics
Q: How are transport units packaged to optimize ocean freight costs?
A: To maximize container loading density, we ship in a Semi-Knocked Down (SKD) flat-pack configuration, achieving a high loading rate of 720 units per 40’HQ container.
Q: What is the standard factory lead time for a full container order?
A: Our standard manufacturing cycle is 15 to 20 days after technical drawing approval, helping distributors maintain agile inventory levels.
